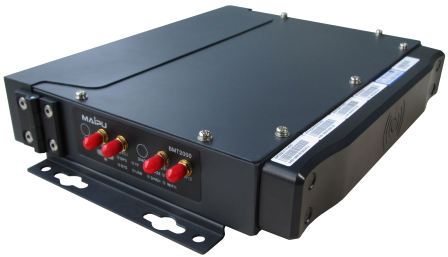

Maipu BMT2000-21

BMT2000-21 developed by Maipu is the multimedia information terminal, applicable to the data backhaul services unavailable to be covered in the wired network. It adopts the 3G/4G high-speed wireless network as the data bearer network and provides secure and express wireless connection for Internet between the remote devices and sites. No matter where you are, your device can make use of the GPRS/CDMA or 3G network over the world to access Internet or enterprise private network fast. BMT2000 series meets the requirements of the industrial users. It is characterized by the low consumption, small dimension, and light weight. The operation temperature of the device is -25℃~70℃. The EMC index is strict. It can be applied to the harsh and narrow industrial environment, ideal choice for the industrial application.

BMT2000-21 provides the upgradeable Wi-Fi platform. Adopting the in-built 3G/4G module, you can share the 3G/4G network through the bus Wi-Fi immediately, making your device access the high-speed Internet network.
BMT2000-21 has the VPN function and can access the 3G-based VPDN private channel of the enterprise. Meanwhile, it supports the device data being transmitted in the secure IPSec tunnel, preventing the data from being accessed and tampered and providing higher security of the network application. BMT2000-21 supports various secure and reliable management methods, providing simple and easy-to-use WEB remote network management and SNMP remote management.
BMT2000-21 supports Wi-Fi (802.11b/g/n) standard, support WEP/WPA/WPA2 authentication algorithm, Radius authentication, Portal authentication, and URL push. BMT2000-21 supports 3G/4G and Ethernet interface as WAN port to access Internet, and also supports 3G/4G port and Ethernet WAN port as backup for each other. 3G/4G and Ethernet WAN ports both can serve as the master port. Ethernet WAN port supports the static address, DHCP, PPPoE and other access modes. The active/standby switchover can support switching based on the link status and also support the switching based on IP. BMT2000-21 supports the local content on-demand and accesses the local content via Wi-Fi. You can watch the videos and news without accessing Internet.
BMT2000-21 supports the video output function, it integrates HDMI/AV/VGA interfaces, adopting the video output interface to connect the TV screen. It pushes the media information play via the media push server.
Maipu owns the whole-network solution for 3G/4G enterprise-network application and can provide the high-performance central LNS router and the core security router supporting the large-capacity IPSec access, as well as the matching AAA authentication server and 3G/4G device management system (E3G).

Do pobrania:
- Datasheet
